5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine

Brand Name : SKYLINE

Model Number : SL-T26

Certification : CE

Place of Origin : China

MOQ : 1 unit

Payment Terms : Western Union, T/T, MoneyGram

Supply Ability : 1 pcs/ month

Delivery Time : 35 working days

Packaging Details : plywood case

Name : furniture testing machine

Controller : PLC+ Touch screen

Motor : air cylinders

Standard : EN 527-3, EN581-3 and BIFMA X5.1, IS5967

Air supply : 7kgf/cm^2

Capacity : 2KN,4 pcs；5KN,1 pcs

Contact Now

5 Air Cyliners PLC Control Toys Testing Equipment, Table furniture testing machine

Features

  • It equips 5 group pneumatic cylinder which is 1 set vertical device and 4 set calibrate velocity & thrust separately. Stroke is 500mm
  • Quadruplet brake of vertical device can be adjustment front and back & up and down (100mm~900mm)
  • Quadruplet brake of horizontal device can be adjustment up and down & left and right, it can cooperate with different test position.
  • It has several rows screws hole in the bottom panel of tester which is convenient to install different accessory or fixed test condition
  • It equipped the quick coupling location in front of pneumatic brake for each group which is convenient to change different load or grip.
  • Color touch screen & PLC controller, easy operate interface, display imaging and more inconvenient for operator.

This test machine is used for testing the strength and stability of tables and trollys.Can do following testing.

Strength Testing

  1. Vertical static load test
  2. Sustained load test
  3. Horizontal static load test
  4. Vertical impact test


Stability Testing:


1. Vertical stability test
2. Horizontal impact test.

Product Introduction

This machine is used for static load test and durability test of table, desk and other furniture. Each pneumatic device can work together or independently, and can also be adjusted to meet different test requirements

Test Standards

EN 12521, BS EN 15372; EN 1730; EN 581-3, EN 1728

Technical Parameters

Basic Test Frame 3x3x2m,be made of 80x80mm Alu.material
Load air cylinder TAC 5 sets of 500mm stroke air cylinders (including 4 sets of 50 diameter Horizontal cylinders and 1 set of 63 diameter vertical cylinder)
Force sensor high precision brand sensors 2KN * 5 sets
Control method PLC and LCD touch screen
Counter 0~999999 (adjustable)
Force adjust

precision pressure valve equipment with sensor to disply
Air supply 7kgf/cm^2
Power supply 1∮ AC 220V 50Hz 5A


Product Tags:

5 Air Cylinders Furniture Testing Equipment



PLC Control Furniture Testing Equipment



Table Furniture Testing Equipment


Wholesale 5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine from china suppliers

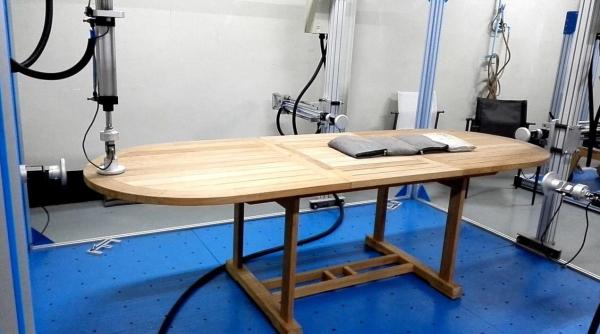

5 Air Cylinders PLC Control Furniture Testing Equipment, Table Furniture Testing Machine Images
