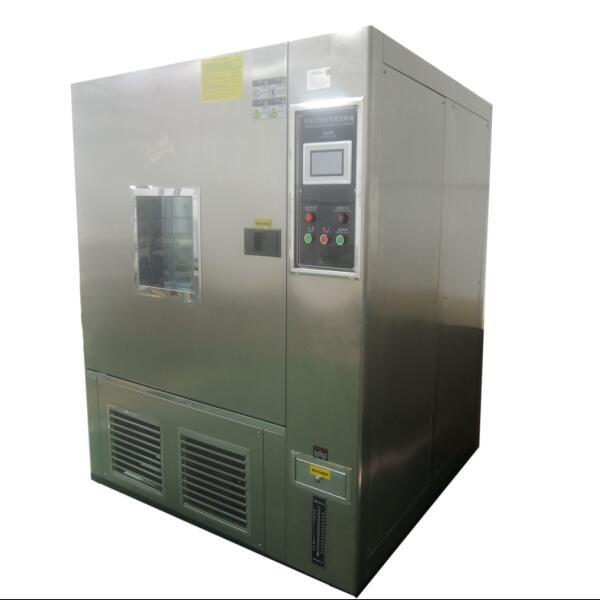

800L Temperature And Humidity Testing Chamber With Safety Protection Device

Name: 800L Temperature And Humidity Testing Chamber With Safety Protection Device
Brand: SKYLINE
Price: 1 USD

Wholesale 800L Temperature And Humidity Testing Chamber With Safety Protection Device from china suppliers

Brand Name : SKYLINE

Model Number : SL-E01

Certification : CE

Place of Origin : CN

MOQ : 1 unit

Price : Negoitable

Payment Terms : T/T, Western Union, MoneyGram

Supply Ability : 10 pcs/ month

Delivery Time : 10 working days

Packaging Details : Plywood case

SKYLINE : Programable Contant Temperature and Humidity Testing Chamber

Temperature range : -40 ℃ ~ +100 ℃;

Internal size : 800 * 600 * 850mm

Temperature fluctuation : ≤ ± 1 ℃;

Temperature uniformity : ≤ 2 ℃;

Power supply : 380V ± 10% V; 50Hz;

Contact Now

800L Temperature And Humidity Testing Chamber With Safety Protection Device

Applications

The test chamber function is to provide high and low temperature and humidity constant, high and low temperature and humidity alternating test environment; with refrigeration systems, heating systems, humidification / dehumidification / water systems, duct systems, control systems, system safety protection

Main technical

Studio size	800 × 1000 × 1000mm (depth × width × height)
Dimensions	1300 × 1470 × 2100mm (depth × width × height)
Temperature	20 ° C
The temperature fluctuation	≤ ± 1 ℃
The temperature uniformity	≤ 1 ℃
The temperature deviation	≤ ± 2 ℃
The rise and fall rate	From room temperature ~ 20 ℃, about 15min
Humidity	65% R.H
Humidity error	+2 / -3% R.H
Wind speed	1.7 ~ 2.5m / s The above indicators are in the ambient temperature ≤ 25 ℃, atmospheric pressure, no load, no load conditions, from the box wall 1/6 space measured test
Power	about 8.5Kw
Power	380V ± 10% V; 50Hz
Meet the relevant standards and test methods	GB / T2423.22-87Nb GJB1032-90 MIL-STD-2164 / (E / C) GB / T2423.4-93 GB / T2423.34-86 GJB150.9-86

Safety protection device
1.Studio over-temperature protection;
2.Heater short circuit protection;
3.Humidifier short circuit protection;
4.Fan overload protection;
5.Compressor overpressure protection;
6.Compressor overload protection;
7.Water cut / water protection;
8.Leakage protection;
9.Safe and reliable grounding device

Temperature And Humidity Testing Chamber.pdf
